VVT tuning pour tuners : une méthode pratique qui part du banc

VVT tuning guide workflows should begin with exact engine and ECU identification, mechanical verification and an understanding of how that platform controls cam phasing. There is no universal sequence of “offset → PID → target angle” that applies to every production ECU, and not every system exposes tunable PID gains or duty offsets at all. The professional approach is to verify oil pressure and actuator health, identify the real VVT control strategy, log commanded versus actual cam position, then optimize target phasing with repeatable testing appropriate to the engine and calibration objective.

TL;DR:

• VVT calibration is platform-specific: some ECUs expose target angles only, while others also expose actuator control, offsets or PID-related parameters.
• Mechanical condition, oil pressure, solenoid/phaser health and cam/crank correlation must be correct before tuning.
• Advancing or retarding cam timing does not have one universal torque-versus-RPM effect; the result depends on engine geometry, load, airflow and exhaust backpressure.
• Dyno testing is valuable for repeatability, but road, engine-dyno or controlled steady-state methods can also be valid depending on the goal.
• Validate commanded versus actual cam position and the engine response using platform-appropriate logs rather than fixed universal sample rates or angle tolerances.

VVT Tuning Guide: What Variable Valve Timing Changes

Variable valve timing changes cam phase relative to crankshaft position, allowing the engine to alter valve-event timing across operating conditions. Its benefits depend on the specific VVT architecture and calibration.

Factory VVT maps balance emissions, drivability, fuel economy, component protection and production tolerances. A modified calibration may shift that compromise, but gains are not guaranteed simply because the factory map is conservative.

Cam advance or retard can move the torque curve, but the direction and magnitude are engine-specific. Treat general rules of thumb only as starting hypotheses to test on the actual engine.

VVT Tuning Guide: Equipment and Mechanical Baseline

A chassis or engine dyno provides repeatable load control and is highly useful for VVT optimization, but it is not the only valid validation method. Controlled road logging or other repeatable test methods may also be appropriate when dyno access is unavailable.

Get these in place before the first pull:

• Calibration software or definitions that expose the relevant VVT target/control strategy for the exact ECU.
• A logger that can capture commanded and actual cam position plus the engine-response channels needed for the test.
• A diagnostic tool for cam/crank correlation and VVT-related DTCs.
• A repeatable load/test method: engine dyno, chassis dyno or controlled road testing as appropriate.
• Oil-pressure/temperature data or service-test capability where phaser performance depends on hydraulic conditions.

Before changing VVT calibration, confirm oil pressure/temperature, cam-crank correlation, actuator/solenoid condition and any VVT-specific faults. Only then identify which control parameters the ECU actually exposes.

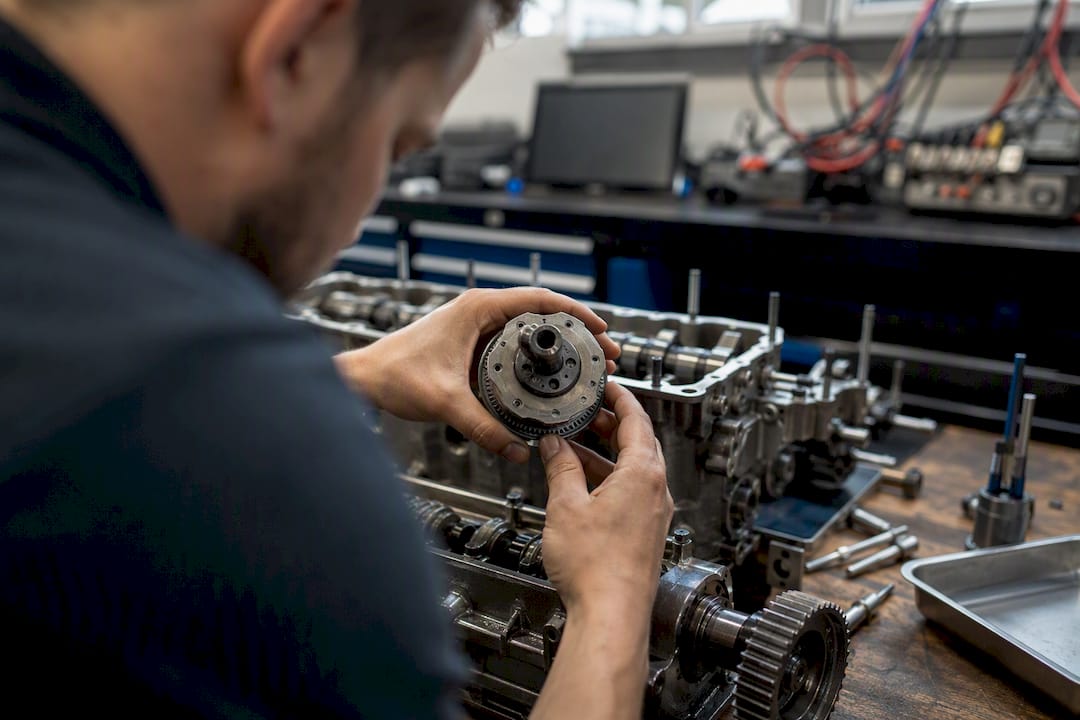

VVT Tuning Guide: Actuator Tracking and Closed-Loop Control

Some controllers expose actuator offsets, base duty or feed-forward tables, while others do not. If such parameters are available, calibrate them according to the controller documentation rather than assuming one universal offset procedure.

Where a tunable PID or equivalent closed-loop controller is exposed, P/I/D terms have the usual control roles, but production ECUs may use different structures, filters or gain scheduling.

1. Feed-forward / base duty: Where exposed, establish enough actuator authority for the phaser to track without forcing the feedback loop to compensate for a large dead zone.
2. Proportional action: Increase response to tracking error only where the controller exposes a tunable proportional term.
3. Integral action: Use only where available to remove steady-state error without creating slow oscillation.
4. Derivative or damping: Use the controller’s documented damping/filter strategy rather than assuming a tunable D term exists.

Evaluate actuator tracking at representative RPM, load, oil temperature and pressure. Use the controller’s documented stability criteria rather than a universal one-second response or five-degree overshoot target.

Astuce de pro : If you’ve raised P and D repeatedly and the actuator still can’t track a step command cleanly, stop tuning the PID and go check oil pressure and solenoid condition. A control-loop problem and a mechanical problem look identical in a log, and no amount of gain tuning fixes worn hardware.

VVT Tuning Guide: Building the Target-Angle Table

In a VVT tuning guide, target-angle optimization is where engine-output and efficiency effects are usually evaluated, but the appropriate test method depends on the ECU and objective.

1. Choose representative RPM/load breakpoints and establish repeatable baseline conditions.
2. Sweep or step through safe cam-angle candidates while changing as few other variables as possible.
3. Compare torque, airflow/VE, knock, lambda/fueling, exhaust pressure/temperature and cam tracking as relevant to the engine.
4. Use steady-state testing for cells where cruise/part-load efficiency or emissions behavior matters.
5. Interpolate between validated points, then verify transitions rather than assuming interpolation is automatically correct.
6. Repeat enough tests to distinguish a real change from normal test variance; use the dyno/test-cell repeatability rather than a universal 2–3 pull or 3% rule.

Published research shows that coordinated VVT/EGR optimization can improve efficiency at selected operating points, illustrating that VVT is not only a peak-power tool.

VVT Tuning Guide: Naturally Aspirated vs Turbocharged Overlap

Valve overlap affects scavenging, residual gas and pressure exchange, but its behavior differs with engine geometry, turbocharger, exhaust backpressure and load.

• Naturally aspirated engines can use overlap to influence scavenging and residual gas, but the optimum varies with intake/exhaust tuning and RPM.
• Turbocharged engines add intake/exhaust pressure ratio and turbine backpressure, which can change whether overlap helps or hurts cylinder filling.
• Turbo size alone does not determine ideal overlap; manifold pressure, exhaust pressure, cam profile and combustion response must be measured.
• Validate overlap changes from torque, pressure, knock, temperature and turbo-response data on the actual hardware.

Do not use a universal small-turbo/large-turbo overlap rule. Compare intake and exhaust pressure, turbo response, torque, knock and exhaust temperature on the actual combination.

VVT changes can alter volumetric efficiency, residual gas, fueling requirements, knock margin and aftertreatment behavior, so related calibration areas may need re-validation.

VVT Tuning Guide: Logging and Data Quality

A VVT tuning guide depends on trustworthy cam-position and engine-response data, so logging quality and repeatability matter.

Choose logging channels from the actual ECU and test objective; there is no universal minimum list or fixed sample rate.

• Commanded and actual intake/exhaust cam position where available.
• RPM and the load/torque measurement used for the comparison.
• Oil temperature/pressure or other phaser-health data where available.
• Lambda/fueling and ignition/knock channels when VVT changes affect combustion.
• Boost/intake and exhaust pressure or turbo data when overlap is being optimized on a boosted engine.
• DTCs and cam/crank correlation status.

Filter out transition or tracking-error data when it would invalidate the comparison, but use platform-specific tolerances rather than a universal ±1–2 degree rule.

Name and tag every log with the angle commanded, the RPM/load cell tested, and the date, so overlays months later still make sense. Most modern logging software supports overlay and per-angle peak extraction directly, which is the fastest way to build the ramp-run comparisons described earlier. A professional tuner’s guide to reading ECU data covers PID selection and interpretation in more depth if your logger setup needs refining.

Astuce de pro : Tag outlier pulls immediately, not at the end of the session. A “weird” pull that gets buried in fifty other logs is the one that ends up averaged into your final table three weeks later.

VVT Tuning Guide: Troubleshooting Tracking and Mechanical Faults

VVT faults can come from oil pressure/flow, solenoids, wiring, phaser wear, timing-chain/belt issues, sensor errors, calibration or ECU strategy. Use diagnostics to separate mechanical and control causes.

• Oil pressure/flow problems: compare commanded versus actual cam movement at different RPM and temperatures.
• Solenoid/electrical faults: inspect DTCs, command response, wiring and signal consistency.
• Phaser/timing-drive wear: check mechanical timing, backlash and the manufacturer’s service procedure.
• Sensor/correlation issues: verify cam/crank signals before altering control gains or target angles.
• Calibration/control problems: investigate only after the mechanical and electrical baseline is confirmed.

Manufacturer service information commonly highlights oil-pressure/flow and actuator faults as important VVT diagnostic checks. If commanded and actual cam position remain outside specification after mechanical diagnosis, stop calibration work until the fault is resolved.

VVT Tuning Guide: Verifying the Result

A completed VVT table still requires validation under repeatable conditions appropriate to the calibration objective.

1. Repeat before/after testing under matched operating conditions.
2. Confirm actual cam position tracks the commanded target adequately for that platform.
3. Check torque/airflow/efficiency improvement in the cells the VVT change was intended to affect.
4. Verify knock, lambda/fueling, temperatures and drivability remain acceptable.
5. Record the released ECU file revision and the validated VVT changes for future comparison.

How TuningBot Supports VVT-Sensitive Calibration Workflows

TuningBot can provide calibration files for supported ECU workflows where VVT target or related torque/airflow strategies are available in the exact software version.

Before ordering, check Couverture des services ECU, examiner Liste de prix publique and browse Services de l'ECU.

For related technical context, use the verified Torque Curve Guide, Guide de réglage de la carte de carburant et Dyno Tuning Guide.

Submit a supported source file through Reprogrammer le fichier after confirming the ECU and requested calibration scope are covered.

This article stays on VVT technical methodology so commercial ECU tuning keywords remain concentrated on TuningBot’s service/order pages.

Why Repeatable Testing Beats Guesswork in VVT Tuning

VVT tables interact with airflow, fueling, ignition, torque and protection strategies, so values should be based on measured response rather than copied from a similar engine.

The defensible workflow is mechanical verification, reliable position tracking and repeatable before/after testing. Whether PID tuning or dyno testing is required depends on the controller and project.

Prioritize data quality and repeatability. Poor cam-position tracking or inconsistent test conditions can make a target-angle comparison meaningless.

— Équipe technique de TuningBot

Using This VVT Tuning Guide in a Workshop

Use this guide to separate mechanical VVT health, actuator tracking and target-angle optimization before changing cam phasing.

If calibration is outsourced, verify the exact ECU in Couverture des services ECU and submit the supported source file through Reprogrammer le fichier.

The workshop remains responsible for mechanical condition, programming, test safety and final validation.

Sources and Further Reading

• EngineLabs — DOHC VVT tuning for boost — external technical reference retained unchanged.
• BeerMoneyMotorsports — VVT setup and tuning — external setup reference retained unchanged.
• ScienceDirect — VVT/EGR optimization research — external research reference retained unchanged.
• PerformanceTrucks — VVT calibration discussion — external community technical reference retained unchanged.
• Ford service manual excerpt — VCT actuator — external OEM/service reference retained unchanged.
• GarageMap — engine diagnostics — external diagnostics reference retained unchanged; not a VVT calibration source.
• TuningBot — Dyno Tuning Guide — verified internal test-method reference.
• TuningBot — Fuel Map Tuning Guide — verified internal calibration reference.
• TuningBot — Torque Curve Guide — verified internal torque-behavior reference.

FAQ

Does VVT Increase Horsepower?

VVT can change torque and power when cam phasing is not already optimal for the engine and operating point, but gains are platform-specific and not guaranteed.

Is VVT-i Better Than VTEC?

They are different manufacturer-specific valve-control strategies. Neither is universally better; calibration depends on the exact mechanism and ECU.

What Does VVT Do?

VVT changes cam phasing to influence cylinder filling, residual gas, torque, emissions and efficiency across operating conditions.

What Are the Disadvantages of VVT?

VVT adds mechanical and control complexity and depends on healthy actuators, sensors and—on many hydraulic systems—suitable oil pressure and temperature.
