DPF-related calibration work must be approached as a diagnostic and compliance task, not as a shortcut around emissions faults. On vehicles used on public roads, the Diesel Particulate Filter, SCR, EGR and associated OBD monitoring systems are part of the approved emissions configuration and should remain operational. Software changes that disable these systems can breach road-use laws, invalidate insurance or warranty coverage and create serious environmental and mechanical risks. Professional workshops should first diagnose the root cause of DPF faults, restore the hardware where possible and reserve non-road calibration work for legitimate off-road, competition, research or export applications where it is legally permitted.
Diagnosis before any DPF-related calibration
A DPF warning, high differential pressure or repeated regeneration failure does not automatically mean the filter itself must be removed. The underlying cause may be a failed pressure sensor, leaking pressure hoses, incorrect exhaust temperature readings, worn injectors, turbocharger faults, excessive EGR flow, thermostat problems or short-duty-cycle driving.
A professional diagnostic baseline should include:
- DPF differential pressure: checked at idle and under load against manufacturer specifications.
- Soot and ash loading: distinguished correctly, because regeneration removes soot but not accumulated ash.
- Exhaust gas temperature sensors: verified for plausible readings and correct response during regeneration.
- Regeneration history: distance since last regeneration, aborted cycles and calculated loading.
- Injector correction and combustion quality: excessive fueling or poor atomization rapidly increases soot production.
- Turbocharger and air-path integrity: boost leaks and airflow errors distort soot and regeneration models.
- Engine temperature: a thermostat that keeps the engine too cold can prevent successful regeneration.
- DTC and readiness status: all active, pending and historical codes should be recorded before any software work.
Pro Tip: Save a full diagnostic report before clearing any fault code. The original freeze-frame data often reveals the operating condition that triggered the DPF fault.
Legal and operational scope
For road vehicles, emissions hardware and diagnostic monitors should remain functional. A workshop should clearly document the vehicle’s intended use and refuse any request that would make a road-going vehicle non-compliant. Where a non-road calibration is legally permitted—for example on dedicated competition machinery, stationary industrial equipment, research platforms or export vehicles—the job still requires careful file identification, backup and technical validation.
Key compliance checks include:
- intended vehicle use and jurisdiction;
- insurance and warranty implications;
- road registration and inspection requirements;
- retention of the original ECU file and original hardware;
- written customer declaration for legitimate non-road use where appropriate;
- clear distinction between diagnosis, repair and non-road calibration services.

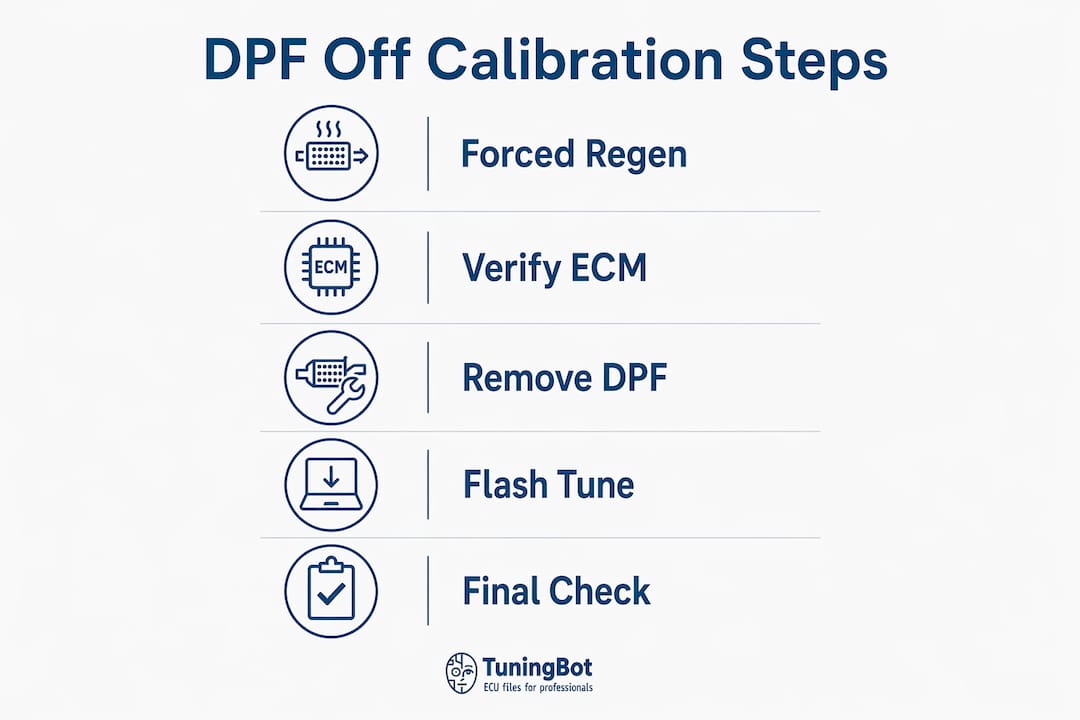

Professional workshop workflow
A safe workflow begins with diagnostics and file identification, not hardware removal. The ECU must be read with the correct protocol, the original file stored securely and the software version matched exactly before any calibration is considered.
- Confirm vehicle and ECU identity. Record VIN, ECU hardware number, software number and current calibration ID.
- Complete the mechanical diagnosis. Resolve sensor, injector, turbo, temperature and air-path faults before file work.
- Read and back up the original ECU file. Keep at least two verified copies in separate storage locations.
- Verify legal use and service scope. Confirm whether the vehicle remains road-registered or is a legitimate non-road application.
- Use the correct calibration service. Submit the exact original file and complete diagnostic context rather than a generic base file.
- Check checksum and file structure. The modified file must match the ECU variant and pass binary integrity checks.
- Flash with stable voltage. Use a regulated support unit and never interrupt the write operation.
- Perform post-write diagnostics. Recheck DTCs, readiness status and live data before releasing the vehicle.
The correct sequence depends on the platform and legal use case. There is no universal instruction to remove the DPF, SCR or EGR system, and no universal torque specification for aftermarket exhaust components. Those values must come from the vehicle or component manufacturer.
Validation, backup and recovery
A successful flash is not the same as a successful job. The workshop should confirm that the ECU communicates normally, the file version is correct and the vehicle operates without new faults. On road vehicles, OBD readiness and emissions-monitor behavior must remain compliant.
Validation should include:
- post-write ECU and network scan;
- comparison of requested and actual boost, rail pressure and airflow;
- plausibility of exhaust temperature and differential-pressure readings;
- verification of regeneration logic where the DPF remains fitted;
- controlled road or dyno logging under safe conditions;
- confirmation that the original file can be restored if required;
- version-controlled storage of every file revision.
Pro Tip: Never overwrite the original read. Use a naming convention that includes VIN or registration, ECU ID, software version, date and revision number.
Common failure patterns
The most common workshop failures are caused by incomplete diagnosis, mismatched files and unstable flashing conditions rather than by the ECU tool itself.
- Forced regeneration attempted on an unsafe vehicle: a heavily loaded or damaged filter can overheat. Follow manufacturer limits and do not force regeneration when contraindicated.
- Generic file used on the wrong software version: this can create no-start conditions, checksum faults or corrupted torque and diagnostic logic.
- Mechanical fault hidden by software changes: disabling a DTC does not repair a failed sensor, injector, turbocharger or blocked filter.
- Voltage drop during writing: interrupted flashes may require Bench or Boot recovery.
- No original backup: without the original file, restoring factory behavior becomes significantly harder.
- Road-use legality ignored: a technically functional file can still be unlawful for public-road use.
Key takeaways
| Point | Details |
|---|---|
| Diagnosis comes first | DPF faults often originate from sensors, injectors, temperature control, turbo or driving conditions. |
| Road compliance matters | DPF, SCR, EGR and OBD monitors are part of the approved emissions system on road vehicles. |
| Original files are essential | Always retain verified backups before any ECU write. |
| Generic solutions are risky | The calibration must match the exact ECU hardware and software version. |
| Software cannot repair hardware | Suppressing a fault code does not correct the underlying mechanical problem. |
What professional workshops learn from DPF-related faults
The expensive cases usually begin with an incomplete diagnosis. A vehicle arrives with a DPF warning, the fault is treated as a software problem, and the actual cause—a failed pressure sensor, leaking hose, injector imbalance or low operating temperature—remains untouched. The warning returns because the mechanical condition never changed.
The second recurring mistake is assuming that a forced regeneration is always safe. It is not. Excessive soot loading, oil contamination, damaged substrates or incorrect temperature readings can make a forced regeneration dangerous. Manufacturer procedures and measured data must determine whether regeneration, cleaning or replacement is appropriate.
The strongest workshop workflow keeps diagnosis, legal compliance and calibration separate but coordinated. The customer should understand what has failed, what can be repaired and what services are lawful for the vehicle’s intended use.
— TuningBot Technical Team
TuningBot’s DPF-related calibration support for workshops
TuningBot supports professional workshops with ECU file analysis, checksum correction and supported DPF-related calibration services for legitimate applications. Every job should include the exact ECU file, complete diagnostic context and a clear statement of intended use.
Before ordering, workshops can:
- check ECU Service Coverage;
- review the public Price List;
- consult the dedicated DPF service page and its use restrictions;
- upload the original ECU file without purchasing prepaid credits.
TuningBot supports professional tools including Alientech KESS3, AutoTuner, Magic Motorsport, CMD, Dimsport and PCMFlash. For technical background, see the DPF logic and legal-risk guide, the DPF backpressure guide and the checksum correction guide.
FAQ
What should be checked before any DPF-related calibration?
Check differential pressure, soot and ash loading, temperature sensors, regeneration history, injector correction, boost leaks, engine temperature, DTCs and ECU identification.
Can software fix a physically blocked DPF?
No. A physically blocked or damaged filter requires diagnosis, cleaning or replacement. Software cannot restore lost substrate capacity or repair a failed sensor.
Is DPF Off legal on a road vehicle?
In many jurisdictions, disabling or removing emissions equipment from a road vehicle is illegal and may invalidate insurance, inspection and warranty coverage. Workshops must verify local law and intended vehicle use.
Is forced regeneration always safe?
No. It must only be performed when the manufacturer’s conditions are met. Excessive loading, damaged filters, oil contamination or faulty sensors can make forced regeneration unsafe.
Why is the original ECU file important?
It provides the recovery path, allows comparison with later revisions and enables restoration of the factory calibration when required.
